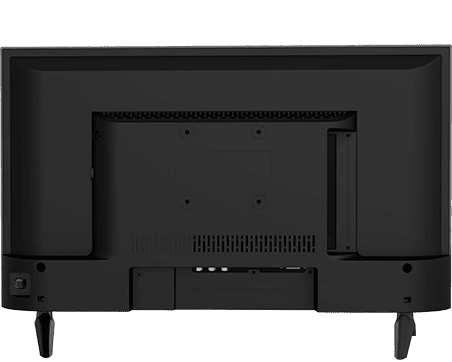

B18 Series CCTV Monitor

Products Details

Product Specifications
B18 Series CCTV MonitorDifference contrast
  •
  •   Model 22B18K
  •   Panel size 22"
  • Display parameters Backlight category DLED
  •   Optimum resolution 1920*1080@60Hz
  •   Viewing angle H:178°/V:178°
  •   Brightness 200cd/m² / 250cd/m²
  •   Contrast ratio 3000:1
  •   Response time 18ms
  •   Color 16.7M
  • Power waste Power ≤38W(Without OPS)
  •   Standby Power Consumption ≤0.5W
  •   Operating volt age 100V-240VAC 50/60Hz
  • Specifications Bare dimension 504.1mm*67.4mm*301.4mm(Without stand) / 504.1mm*155.9mm*340.2mm(With stand)
  •   Packing dimension 564mm*113mm*385mm(With stand)
  • Input interface HDMI 4
  •   VGA 1
  •   AV 1
  •   RS232 1
  •   Y/PB/PR 1
  •   PC AUDIO 1
  •   USB 3
  •   LAN 1
  •   OPS 1
  • Output interface RS232 1
  •   AV 1
  •   EARPHONE OUT 1
  •   SPDIF 1
  •   HDMI 1
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
